Mod.It.Yourself (M.I.Y) Part 1
DIY electronics for guitar effect pedals has become increasingly popular of late. Guitarists and musicians worldwide are downing instruments and picking up tools to build and modify their own pedals, searching for that unique tone. There are sites like Build Your Own Clone, General Guitar Gadgets and Tonepad that sell printed circuit boards (PCBs) and kits to create your own version of popular effect pedal designs. There are also websites like DIYstompboxes, Ampage, GEOFEX and AMZFX that provide a wealth of knowledge from a committed online community. However, all of this information is useless if you do not have the basic tools and techniques to enter the DIY realm. The Mod.It.Yourself (M.I.Y) blog series aims to give you those skills (plus a handful of ideas) so you too can begin deconstructing electronics to create your own personalised sound.
Part 1 of the M.I.Y series is starting from the beginning – Tools and Techniques. Without these fundamentals, you will no doubt be left with damaged parts, boards and burnt finger tips. So safety first! Be sure to work in a well-ventilated, well lit work area with a clear work space to avoid burning anything as a soldering iron can reach 900 degrees (480°C). Soldering produces fumes so ventilation is a must and safety glasses/goggles are also recommended as stray metal is known to fly around an electronics work space.

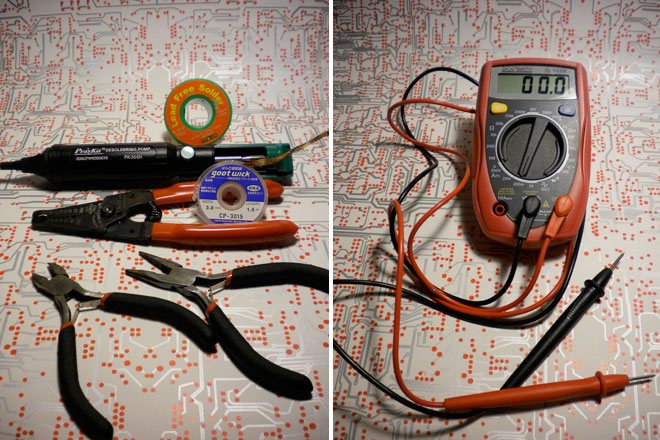

To build/modify any electronics you will need to have tools for soldering. Soldering is the melting of metal to join two components to form a conductive connection (solder joint), so you will need solder and a soldering iron to create this connection. Soldering irons come in many forms but a 40W iron is best to provide adequate heat transfer and solder flow. Solder comes in different compositions, with different types of metal. Leaded solder flows best but has toxic fumes so try and use lead free solder. There are other tools required for building/modifying guitar pedals; long-nose pliers, side cutters (or snips), multimeter and wire strippers (as pictured). These tools will help in populating boards, cutting away component legs, checking proper connections and stripping insulated wire.
Now that we have the tools, let’s get to soldering technique.

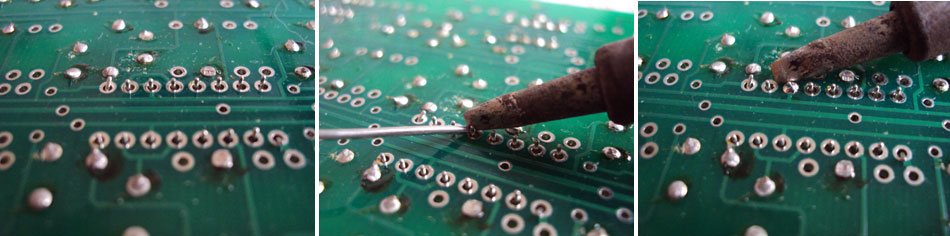

To form a solder joint, place the component through the PCB hole and follow these four easy steps to ensure a solid joint is made:
(1) It is important to place the iron where the component passes through the board. Heat this spot for a second.
(2) Apply the solder to this spot. Keep applying solder until a dome forms up the component leg (two seconds).
(3) Remove strand of solder while maintaining iron on spot. This allows the solder to flow through the PCB hole (one second).
(4) Finally, remove iron from spot. Cut off the remaining component leg and you should now have a shiny, solid solder joint.
But mistakes do happen, and a technique as important as soldering is desoldering, the process of removing solder from a joint. This skill is a must in electronics for removing components from a board, correcting a bad (or cold) solder joint etc. A desoldering pump and desoldering wick or braid (as pictured) are just as valuable as a soldering iron and are must haves in your toolbox. This video from Make Magazine runs through a few desoldering methods, as well as a brief soldering demonstration and is well worth watching.
So go off to your local electronics store, pick up these tools and an electronics kit and practice your soldering/desoldering technique. In Part 2 of the M.I.Y series, we will look at common modifications to overdrive/distortion pedals and how to hot-rod that old pedal on your shelf into a mean gain machine. Until then…
